Milling using CEREC
Precise, fast, versatile
All the components of the CEREC system fit together perfectly – from the acquisition of the digital impression to the milling of the final restoration.
The user-friendly CEREC SW 4.2., the fully automated milling process, the clinical benefits of all-ceramic materials, complete treatment in a single session as well as positive feedback from patients – all these factors combine to maximize your job satisfaction. And if you decide to install the milling unit in your reception room, you will create a real talking point and focus of interest. Our three milling units, each with a different focus, make it even easier to find the right solution for your dental practice:

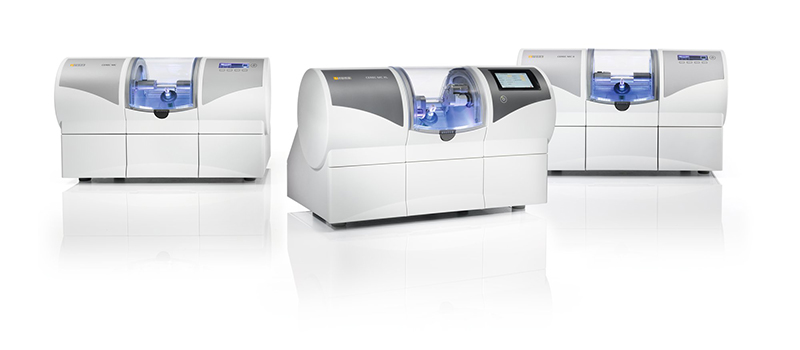

CEREC MC; CEREC MC X; CEREC MC XL Premium
The similarities of the 3 CEREC milling units are that all of them deliver professional, long-lasting results in just a few minutes. They mill restorations with a textbook accuracy of ± 25 μm. The clearly laid-out control panel and colored status lighting ensure optimum ease of use.
In-house milling is a cost-effective option
Did you know that you can mill a crown depending on the milling unit and program in just 8-18.
That means more time for your patients and more profit for your dental practice.
|
FEATURES |
CEREC MC |
CEREC MC X |
CEREC MC XL Premium |
|
Indications |
Fully anatomical single-tooth resorations |
Complete chairside spectrum |
Complete CAD/CAM spectrum |
|
Milling accurarcy |
+/- 25 µm |
+/- 25 µm |
+/- 25 µm |
|
Maximum block size |
15,5x19x20 mm |
15,5x19x40 mm |
22x40x85 mm |
|
CEREC Software 4.2 |
■ |
■ |
■ |
|
Fully anatomical single-tooth restorations (feldspar ceramic, glass ceramic, lithium disilicate ceramic, translucent zirconium oxide (TZI), hybrid, mono-sized polmyer blocks) |
■ |
■ |
■ |
|
Bridges up to 4 units |
■ |
■ |
|
|
Abutments (zirconium oxide, lithium disilicate) |
■ |
■ |
|
|
Surgical Guides (CEREC Guides) |
■ |
■ |
|
|
inLab Software 4.2 |
optional |
■ |
|
|
Copings, frameworks, bars, attachments, telescopes, mutilayer, stack milling, nesting |
optional (up to 40 mm block size) |
■ |
|
|
Sinterable metal (NPM) |
optional |
■ |
|
|
Milling of zirconium oxide and polymers |
TZI mono only |
■ |
■ |
|
Frameworks up to 12 units |
up to 3-4 units |
■ |
|
|
Model Milling (Design 2011 motors necessary) |
■ |
||
|
Four spindel motors |
■ |
||
|
Touch display |
■ |
